DC32 DOWNLIGHT
DC32
Electrostatic powder paint coated die cast aluminum housing
IP20 Protection
Electrical Safety Class II
bilgi_govde -- govde --
govde -
9016,9005,9006,0000
RAL9016 ( govde9016 ),
RAL9016
RAL9005 ( govde9005 ),
RAL9005
RAL9006 ( govde9006 ),
RAL9006
Special Color ( govde0000 ),
Special Color
UGR (CIE Pub.117):9
IEC/EN 62471 Photo-Biologic Protection RG0
bilgi_optik -- optik,ref --
optik -
30,45
30° ( optik30 ),
30°
45° ( optik45 ),
45°
ref -
WH,BL,SR,CR,SG,MG,SM

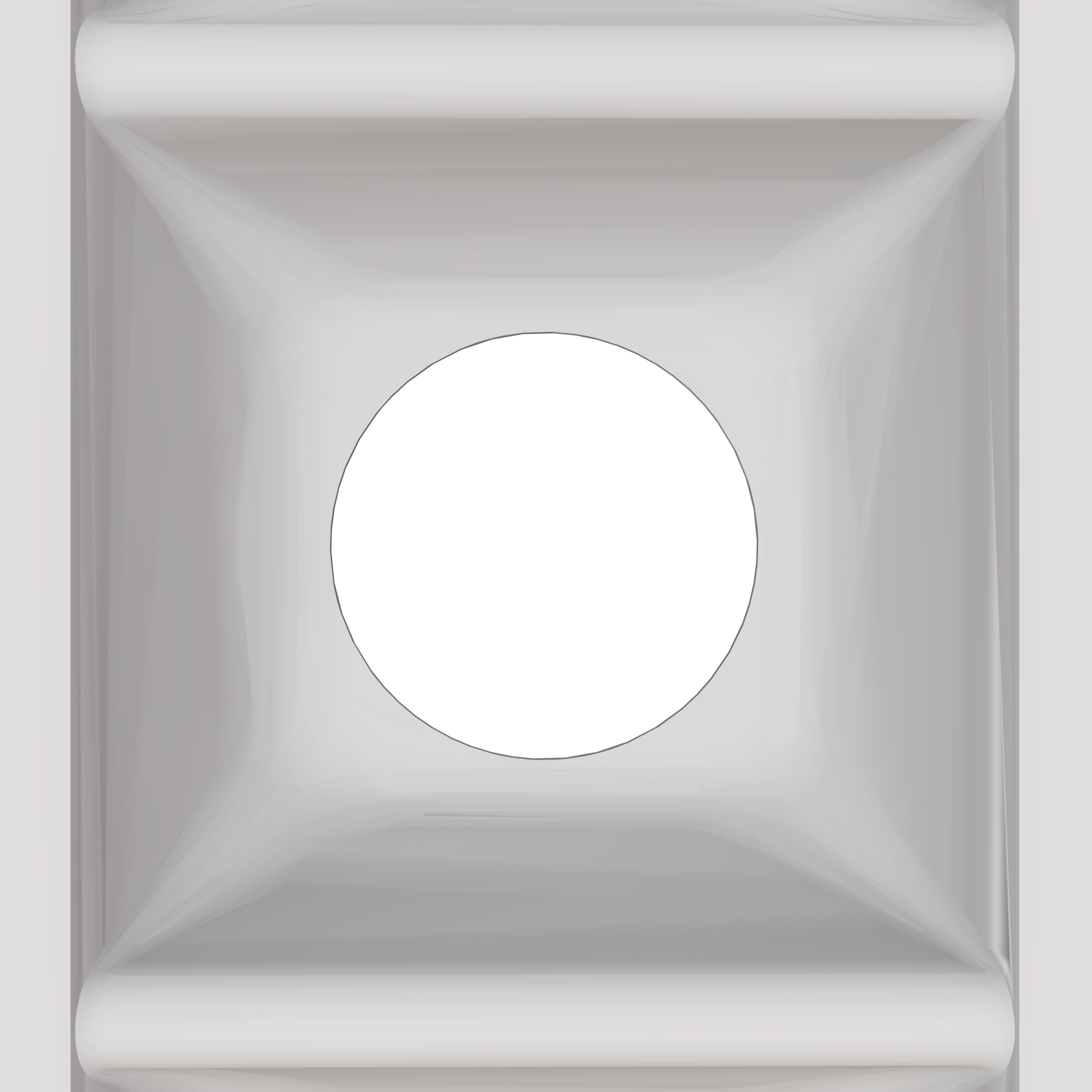

White ( refWH ),
White

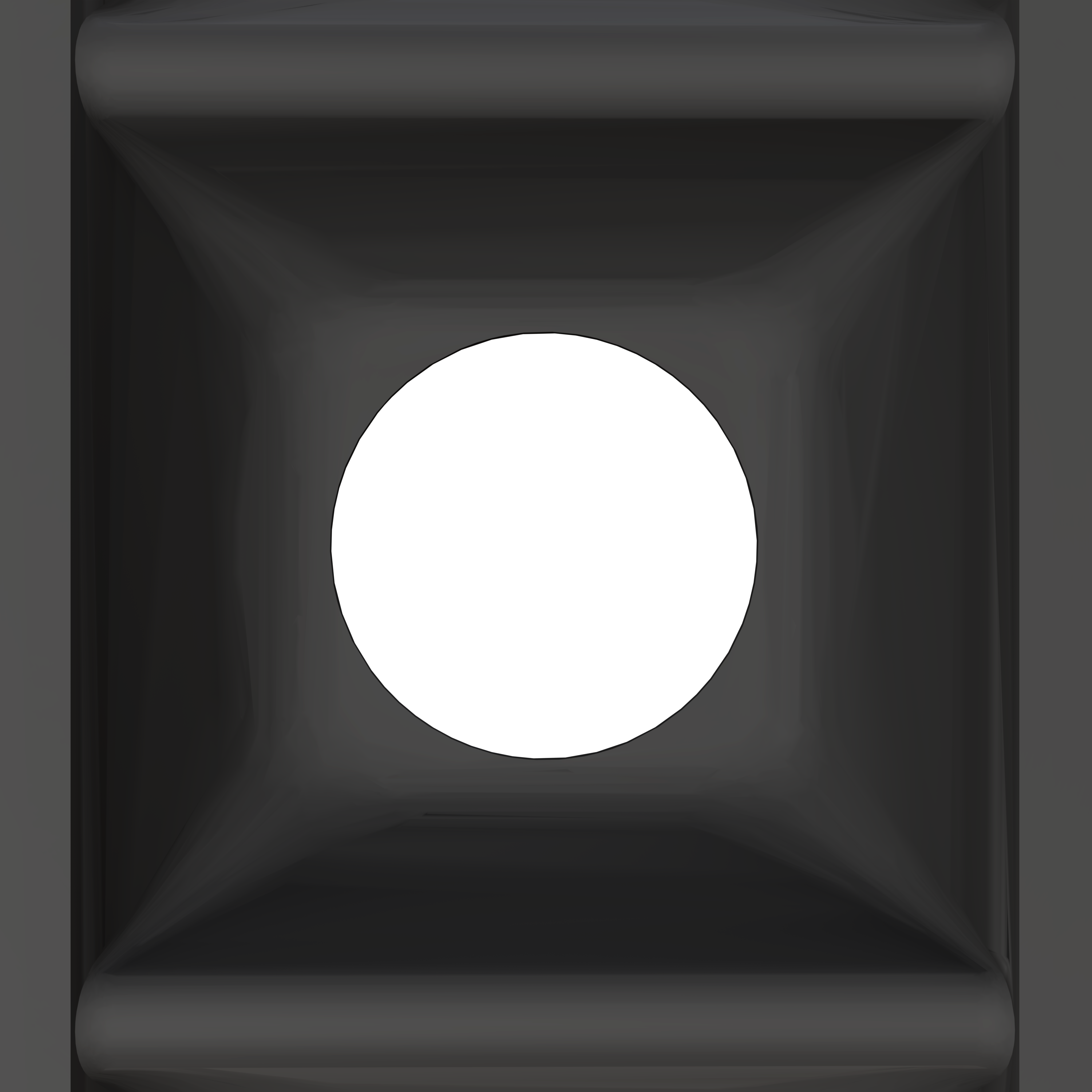

Black ( refBL ),
Black

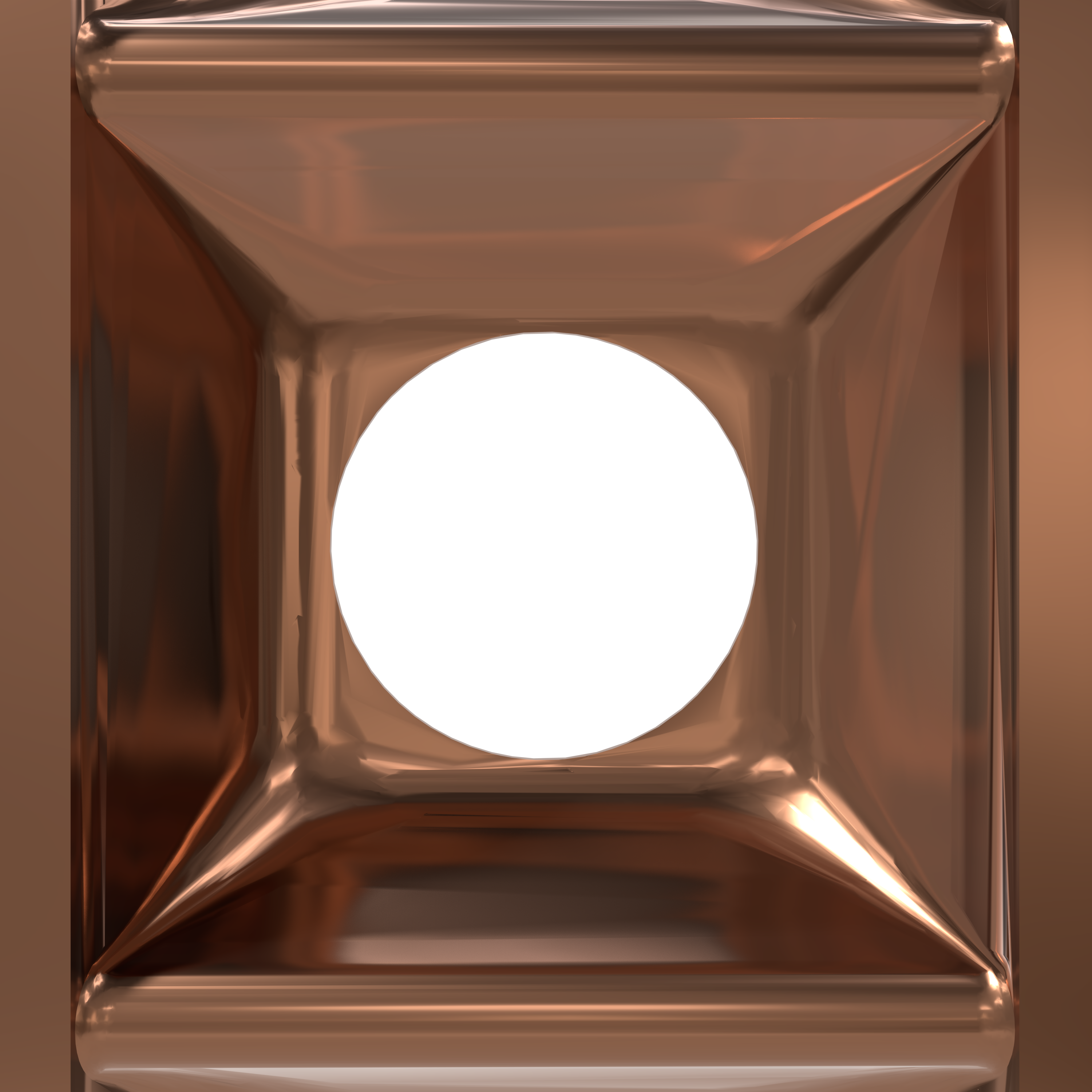

Rose Gold ( refSR ),
Rose Gold

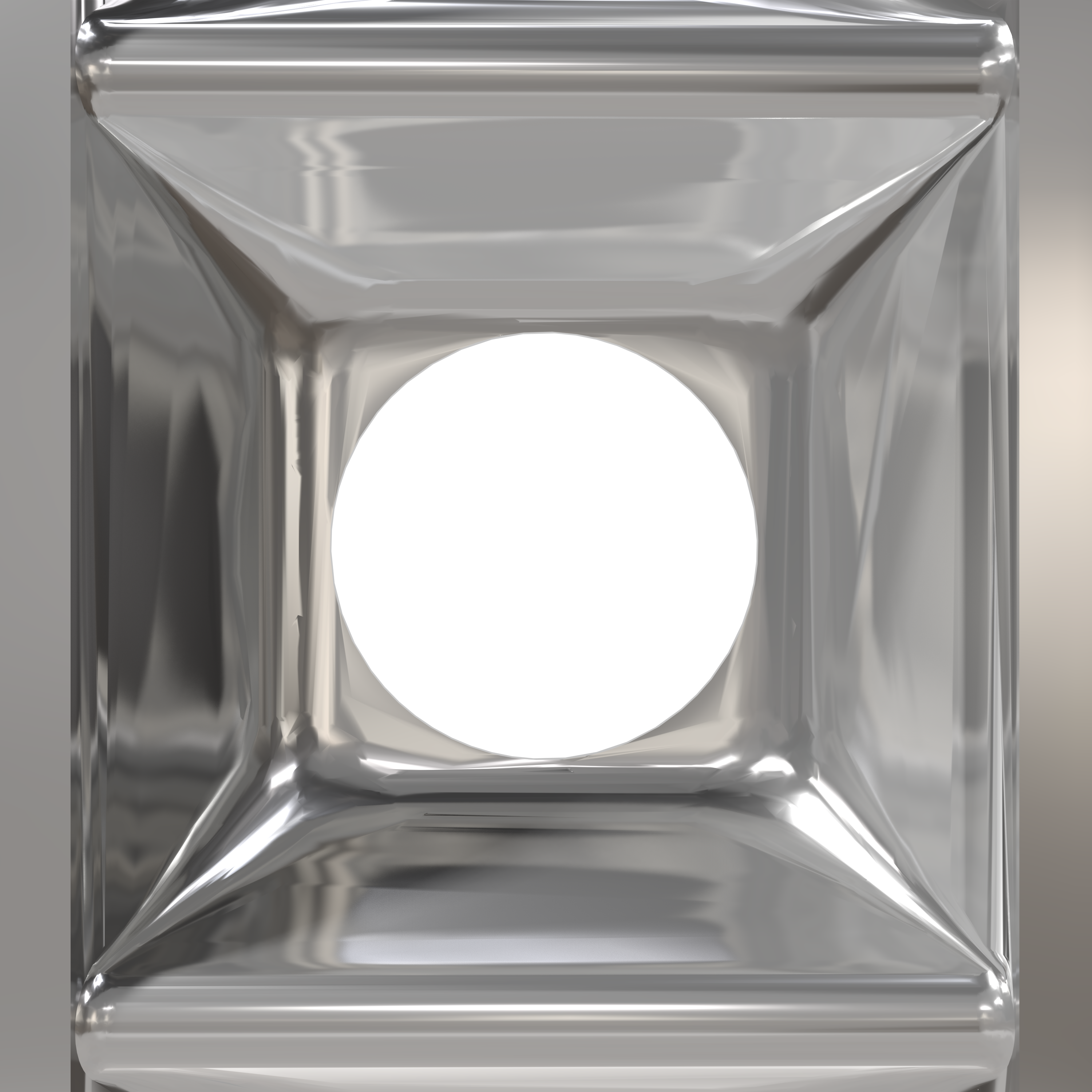

Chrome ( refCR ),
Chrome

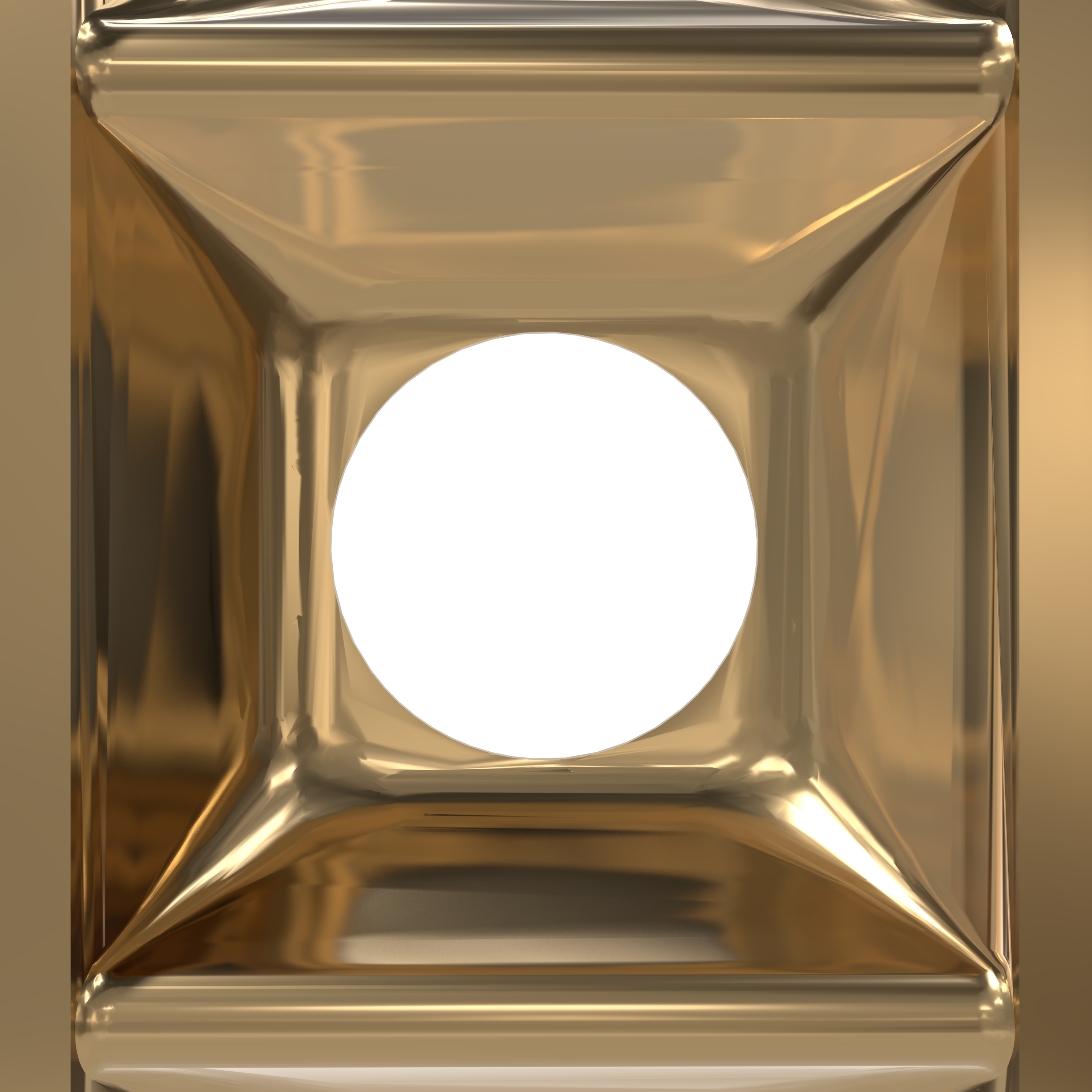

Gold ( refSG ),
Gold

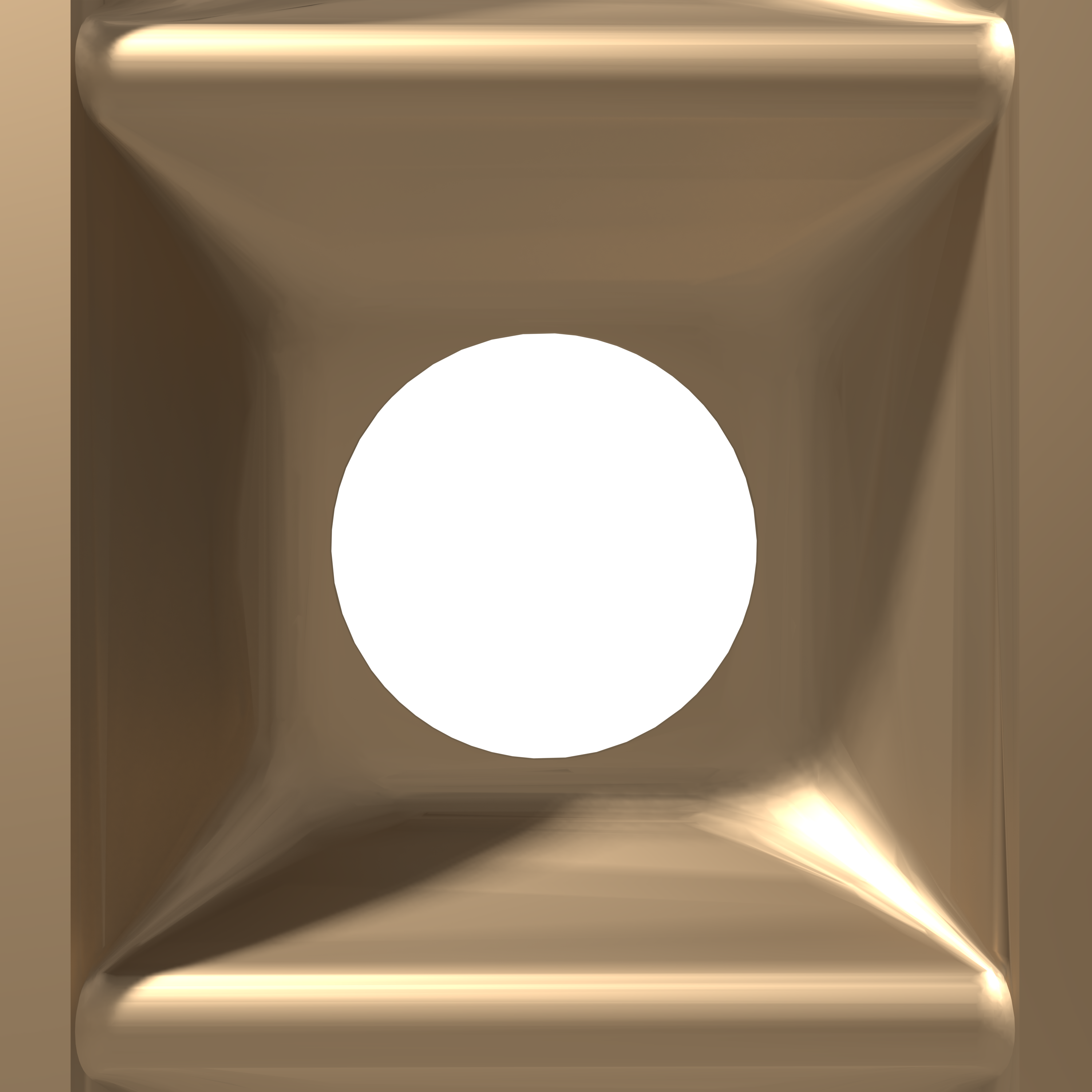

Mat Gold ( refMG ),
Mat Gold

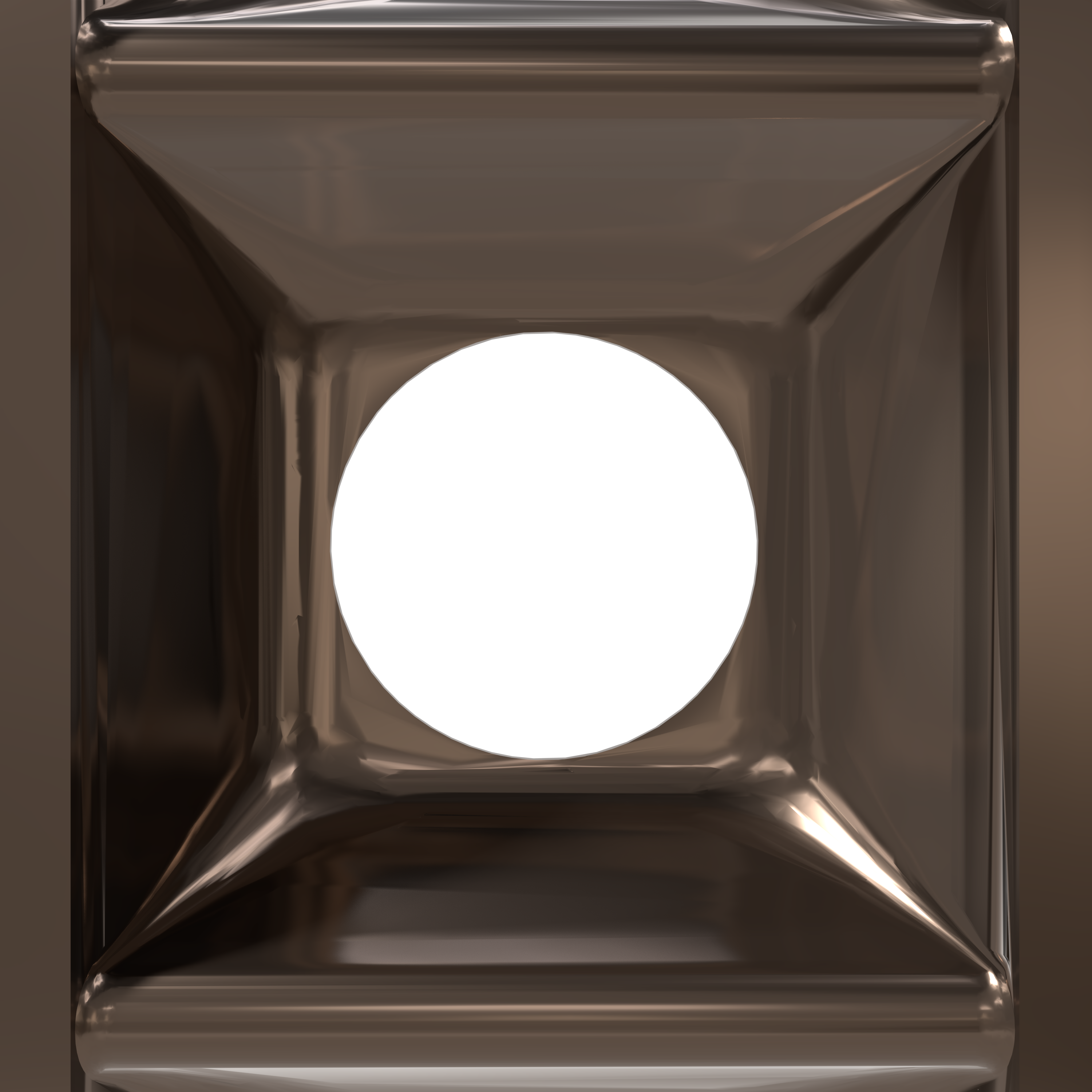

Smoked ( refSM ),
Smoked
COB LED with a minimum lifetime of 100.000 hours
High color rendering index (CRI>80)
bilgi_led -- cri,cct --
cri -
8
CRI:80 ( cri8 ),
CRI:80
cct -
27,30,40,65
2700K ( cct27 ),
2700K
3000K ( cct30 ),
3000K
4000K ( cct40 ),
4000K
6500K ( cct65 ),
6500K
Rated Input Voltage
220-240VAC
Input Voltage Range
176-264VAC
Frequency
50-60Hz
Power Factor
PF>0.60 (P≤25W) / PF>0.95 (P≥25W)
Ambient Temperature
-20°C ~ +50°C
Constant Current Driver
Overload Protection (OLP), Overvoltage Protection (OVP), Short Circuit Protection (SCP), Over Temperature Protection (OTP)
bilgi_kontrol -- kontrol,kit --
kontrol -
O,D
ON/OFF ( kontrolO ),
ON/OFF
DIM ( kontrolD ),
DIM
kit -
3
3 Hours Kit ( kit3 ),
3 Hours Kit
Luminaire Standard
EN 60598-1,EN 60598-2-2
Driver Standard
LVD (EN 61347-1, EN 61347-2-13),EMC ( EN 55015, EN 61547, EN 61000-3-2/3-3)
bilgi_standart -- --
"008":"8W",
"8":"CRI:80",
"27":"2700K","30":"3000K","40":"4000K","65":"6500K",
"S":"Standard Efficient",
"9016":"RAL9016","9005":"RAL9005","9006":"RAL9006","0000":"Special Color",
"WH":"White","BL":"Black","SR":"Rose Gold","CR":"Chrome","SG":"Gold","MG":"Mat Gold","SM":"Smoked",
"30":"30°","45":"45°",
"O":"ON/OFF","D":"DIM",
"S":"Standard Driver","E":"Other Driver",
"S":"No Kit","3":"3 Hours Kit",
"S":"Standard",
"20":"IP20",
Product Dimensions
Dimensions (mm) Ø82x64 Mountage Size (mm) Weight (kg) 0,227
Packing Details
Quantity Per Carton (pcs.) 24 (width)*(lenght)*(height) (cm) 40 x 52 x 29 Gross Weight (kg) 6,9 Pack Deci (x*y*z) / 3000 20,11
DC32-0082 COB Downlight LED Lighting Round Recessed Ø82mm
Power
Lumen
Efficiency
8W 690 lm 85 lm/W
** The values in above table are for standard products and light colors. The values may vary when the LED replaced with a LED having different performance or light color .
"012":"12W",
"8":"CRI:80",
"27":"2700K","30":"3000K","40":"4000K","65":"6500K",
"S":"Standard Efficient",
"9016":"RAL9016","9005":"RAL9005","9006":"RAL9006","0000":"Special Color",
"WH":"White","BL":"Black","SR":"Rose Gold","CR":"Chrome","SG":"Gold","MG":"Mat Gold","SM":"Smoked",
"30":"30°","45":"45°",
"O":"ON/OFF","D":"DIM",
"S":"Standard Driver","E":"Other Driver",
"S":"No Kit","3":"3 Hours Kit",
"S":"Standard",
"20":"IP20",
Product Dimensions
Dimensions (mm) Ø94x82 Mountage Size (mm) Weight (kg) 0,299
Packing Details
Quantity Per Carton (pcs.) 24 (width)*(lenght)*(height) (cm) 39 x 39 x 26 Gross Weight (kg) 8 Pack Deci (x*y*z) / 3000 13,18
DC32-0094 COB Downlight LED Lighting Round Recessed Ø94mm
Power
Lumen
Efficiency
12W 1120 lm 95 lm/W
** The values in above table are for standard products and light colors. The values may vary when the LED replaced with a LED having different performance or light color .
"018":"18W",
"8":"CRI:80",
"27":"2700K","30":"3000K","40":"4000K","65":"6500K",
"S":"Standard Efficient",
"9016":"RAL9016","9005":"RAL9005","9006":"RAL9006","0000":"Special Color",
"WH":"White","BL":"Black","SR":"Rose Gold","CR":"Chrome","SG":"Gold","MG":"Mat Gold","SM":"Smoked",
"30":"30°","45":"45°",
"O":"ON/OFF","D":"DIM",
"S":"Standard Driver","E":"Other Driver",
"S":"No Kit","3":"3 Hours Kit",
"S":"Standard",
"20":"IP20",
Product Dimensions
Dimensions (mm) Ø114x94 Mountage Size (mm) Weight (kg) 0,449
Packing Details
Quantity Per Carton (pcs.) 22 (width)*(lenght)*(height) (cm) 40 x 52 x 29 Gross Weight (kg) 11,3 Pack Deci (x*y*z) / 3000 20,11
DC32-0114 COB Downlight LED Lighting Round Recessed Ø114mm
Power
Lumen
Efficiency
18W 1840 lm 105 lm/W
** The values in above table are for standard products and light colors. The values may vary when the LED replaced with a LED having different performance or light color .
"024":"24W",
"8":"CRI:80",
"27":"2700K","30":"3000K","40":"4000K","65":"6500K",
"S":"Standard Efficient",
"9016":"RAL9016","9005":"RAL9005","9006":"RAL9006","0000":"Special Color",
"WH":"White","BL":"Black","SR":"Rose Gold","CR":"Chrome","SG":"Gold","MG":"Mat Gold","SM":"Smoked",
"30":"30°","45":"45°",
"O":"ON/OFF","D":"DIM",
"S":"Standard Driver","E":"Other Driver",
"S":"No Kit","3":"3 Hours Kit",
"S":"Standard",
"20":"IP20",
Product Dimensions
Dimensions (mm) Ø134x105 Mountage Size (mm) Weight (kg) 0,591
Packing Details
Quantity Per Carton (pcs.) 12 (width)*(lenght)*(height) (cm) 40 x 52 x 29 Gross Weight (kg) 9,24 Pack Deci (x*y*z) / 3000 20,11
DC32-0134 COB Downlight LED Lighting Round Recessed Ø134mm
Power
Lumen
Efficiency
24W 2310 lm 95 lm/W
** The values in above table are for standard products and light colors. The values may vary when the LED replaced with a LED having different performance or light color .
